Eaton 9SX Marine
Marine approved UPS by the DNV-GL, On-line double conversion UPS with automatic bypass, available in two power ratings 1000VA/900W & 3000VA /2700W:
- Mounting rails
- Vibration dampers
- Multilingual LCD display
- Hot swappable batteries
- Power management software
- Relay output
- USB
- Serial port
Buy 1000VA Now
Buy 3000VA Now
Eaton 9PX
Eaton 9PX 230V DNV-GL Approved Single Phase. On-line double conversion Eaton Marine UPS with automatic bypass available in the following models:
- 1500VA Rack/Tower – 2U
- 3000VA Rack/Tower – 3U
Features:
- multilingual LCD display
- hot swappable batteries
- power management software
- USB
- serial port
Buy Now
Eaton 9PHD
The Eaton 9PHD is a modular UPS with up to 97% efficiency and a power factor of 1. Features vibration dampers and installation brackets to support easy installation on board. The cabinet protection is rated to IP22 with halogen free cables and a black start feature being just a few examples of marine specific features this unit is equipped with.
Eaton 9155 – EOL
DNV type approved, BV type approved and ABS design assessed up to 15kVA. Double conversion online technology.
Features:
- single phase or three phase input and single phase output
- small foot print
- patented Hot Sync parallel capability up to four redundant systems
- ABM technology to extend battery service life
- wide communication options
Eaton 9390
Double conversion online technology.
Features:
- three phase input and output
- small foot print
- patented Hot Sync parallel capability up to four redundant systems
- ABM technology to extend battery service life
- wide communication options
Eaton Power Xpert 9395
Double-conversion online technology.
Features:
- three phase input and output
- small foot print
- patented Hot Sync parallel capability up to five redundant systems
- ABM technology to extend battery service life
- wide communication options
FXM Series
The FXM can operate in temperatures of -40°C to 74°C (-40°F to 165°F) supporting your mission critical applications with clean uninterruptible power. The Power Modules provide constant, reliable UPS grade backup power management for Traffic, Security, Telecommunications and other applications.
Adaptable for vertical or horizontal orientations as well as rack mounting. Available in the following models: 350W, 650W, 1100W and 2000W.
Falcon SSG Wide Temperature Industrial UPS
Industrial UPS SSG-KRM Series is available as a Rack/Tower format with an operating temperature of -20 Deg C to + 55 Deg C
Available in power ratings of 1500VA / 1050W, 2200VA / 1540W & 3000VA / 2100W
120VAC (1) & 230VAC (2) versions
Features:
- true double-conversion online
- UL, cUL, CE approved (see data sheet & All 120V models are also UL508 Listed)
- hot swappable, 12 year life batteries at +25 Deg C and 4 years at +50 Deg C
- LCD display with advanced monitoring for easy UPS management
- load segment control
- remote emergency power off (standard) or remote output receptacle contro
- precision output voltage regulation
- extended brownput plus surge and transient protection
- optional extended battery banks and chargers
- UPSilon® UPS monitoring and management software
- RS-232C, USB and Optional SNMP/HTTP Agent
Falcon SSG-RP Series Ultra-Wide Temperature UPS
SSG – RP Industrial Ultra-wide Temperature UPS, designed with high-grade components – Rackmount 1KVA to 3Kva – Optional Extended Run Time Battery Packs
Operates reliably in ultra-wide temperature environments of -30ºC to 65ºC
Features:
- true double-conversion online sinewave design
- UL 1778, UL508, cUL and CE approved (see data sheet)
- hot swap battery packs
- LED display with advanced monitoring for easy UPS management
- load segment control
- remote emergency power off (standard) or remote output receptacle control
- input power factor correction
- wide input voltage window
- precision output voltage regulation
- extended brownput plus surge and transient protection
- optional extended battery banks and chargers
- UPSilon® UPS monitoring and management software
- RS-232C, USB and Optional SNMP/HTTP Agent
Falcon SSG-Industrial Hardwire UPS
Designed for Hardwired Industrial Applications. UL, cUL and CE Approved (see product data sheet. Double Conversion on-line design continuously supplies, clean, tightly regulated power regardless of the incoming power quality
Features:
- -20 Deg C to +40 Deg C Operating Temperature
- Hot swappable 10 year rated batteries
- Available as a 120VAC In / Out (1) or 230VAC In / Out (2)
- remote emergency power off (standard) or remote output receptacle control
- Optional Frequency Converter – SSG easily programmed for use as a 50Hz or 60Hz frequency converter
- precision output voltage regulation
- extended brownout plus surge and transient protection
- for hardware applications
- UPSilon® UPS monitoring and management software
- RS-232C USB and optional SNMP/HTTP agent
Falcon Lithium Iron Phosphate Battery – LifePO4 (for SSG Wide Temp UPS)
The New LifePO4 battery offers the latest advancements in technology. Each LifePO4 pack weighs 44% less than a lead acid battery – with 3 to 4 times longer run times and a 10 year service life.
- Very lightweight – 44% less than a VRLA (lead Acid) ideal for applications with weight/footprint issues
- 3 – 4 times longer run times – The high-energy battery capacity means fewer battery packs and longer time
- Longer Service life: 10 years plus, with 4 x more charge/discharge cycles you cut battery replacements and service costs
- Wide-Temperature range continually operate at -20 Deg C to + 55 Deg C without any performance degradation
- Advanced Safety: Lithium Iron cathode material has no thermal runaway issues – unlike the previous generation of lithium-ion batteries
- ECO Friendly – LifePO4 battery is safe for the environment. It has no caustic materials or dangerous odors
- Available to be fitted within the SSG – KRM Rack/Tower UPS – 1.5KVA, 2.2KVA & 3KVA (1= 120VAC & 2- 230VAC)

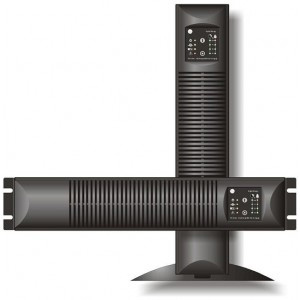

GE VH Series UPS – CE Listed (700VA-3kVA)
The GE VH Series UPS is a true VFI (Voltage and Frequency Independent) on line, double conversion range providing secure power for all onboard critical applications. With a tower and/or rackmount design, the Marine UPS adapts to adjusting network configurations as facility load requirements change.
Specifications:
- single phase output – 208/220/230/240V
- wide input range – 130V to 280V minimising battery use
- 50/60Hz operation – can be used as a permanent frequency converter
- phase neutral reversal protection – no risk of unsafe connection
- high overload capability – continued protection even if overloaded
- precise output frequency regulation – optimized for use with a generator
- wide operating temperature – UPS can operate between -10°C to 40°C
Features:
- unique failsafe internal bypass – continued operation even with overload or over temperature
- 2U design for all ratings – small footprint; all parts delivered for tower or rack assembly
- hot swappable batteries – simple battery replacement without disruption to the load
- matching battery cabinets – longer battery life available with the addition of extra battery cabinet/s
- superior battery management – providing protection to the battery and extending the battery life
- remote monitoring – easy access and control even for unmanned or isolated sites MTBF (Mean Time Between Failure) >730,000 hours – Proven reliability
