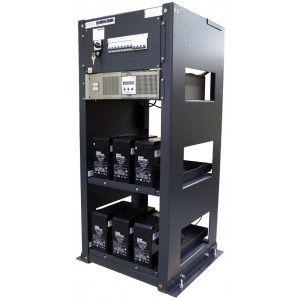

IP21 UPS Systems
The most common standard we build to is IP54 but occasionally the customer will only require an IP20 or IP21 UPS system.
The first figure being Intrusion Protection and the second figure Moisture Protection.
IP 54 = Protected against dust that may harm equipment | Protected against water spray from all directions.
IP20/21 = Protection against fingers or other object not greater than 80mm in length and 12mm in diameter | No protection or Protection against condensation.
Features:
- Manual maintenance bypass switch
- SNMP alarm card
- COTS UPS
- WIMES 3.07
Floor Standing IP54 UPS Systems
Harland Simon manufacture a full integrated UPS system in free standing IP54 enclosures suitable for end applications such as SCADA, PLC, ICA, MCC, pumps, actuators, motors, UV systems and security. Space Saving Design, Back to Wall Installation for easy access for maintenance.
Features:
- 3kVA – 300kVA UPS
- Single phase (up to 20KVA) or three phase
- Extended battery runtimes using VRLA, NiCAD & Li-Ion
- Thermostat/heater/filters/fans optional
- Input/output isolation transformers or 110VAC output
- Alarm Contacts / SNMP / Visual Displays
WIMES 3.07 Compliant | Tested to BS EN60529, 1992, IPX4 & IP5X.
Integrated IP54 UPS Systems
Tested to BS EN60529, 1992, IPX4 (Protection against SPLASHING WATER) & IP5X (Protection against Solid Foreign Objects, DUST Protected).
True on-line double conversion IP54 protected UPS system (IP55 Available for outside installation) with internal static and manual bypasss (option)
Features:
- 3kVA – 300kVA
- Autonomy – As required (Additional Battery Enclosures)
- Floor enclosures, Back to Wall Installation, Easy to Maiantain (UPS on Runners)
- Battery: We upgrade to 10 year Design Life, longer service life in harsher condistions
- WIMES 3.07 compliant
- Choice of Alarm contacts, SNMP, visual displays
